prices in this catalogue are in EUROS per piece (or per meter if wire
etc.) if not indicated otherwise and plus shipping.
Visit our pages also SSL encrypted at https://www.die-wuestens.de
 |

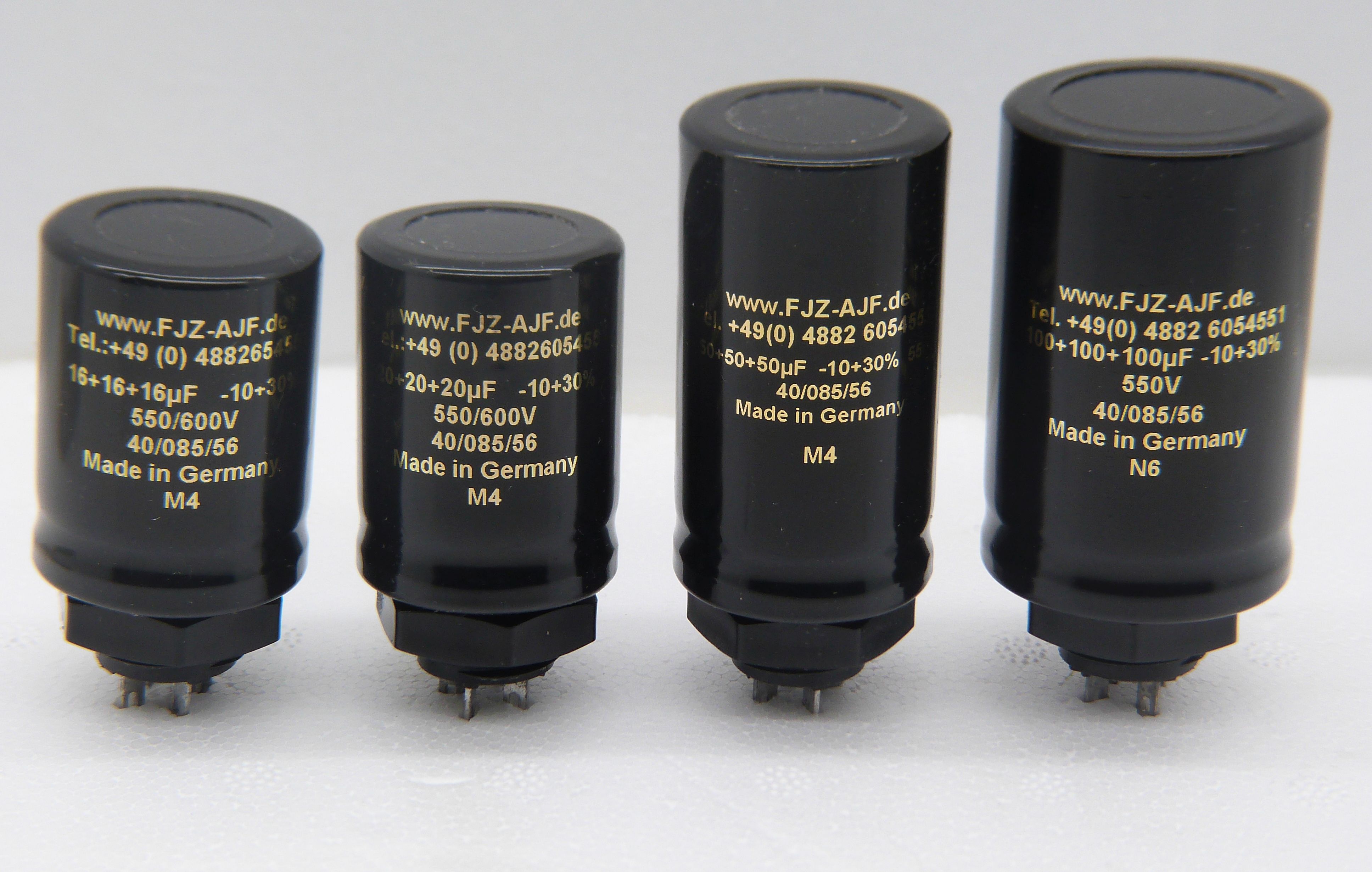

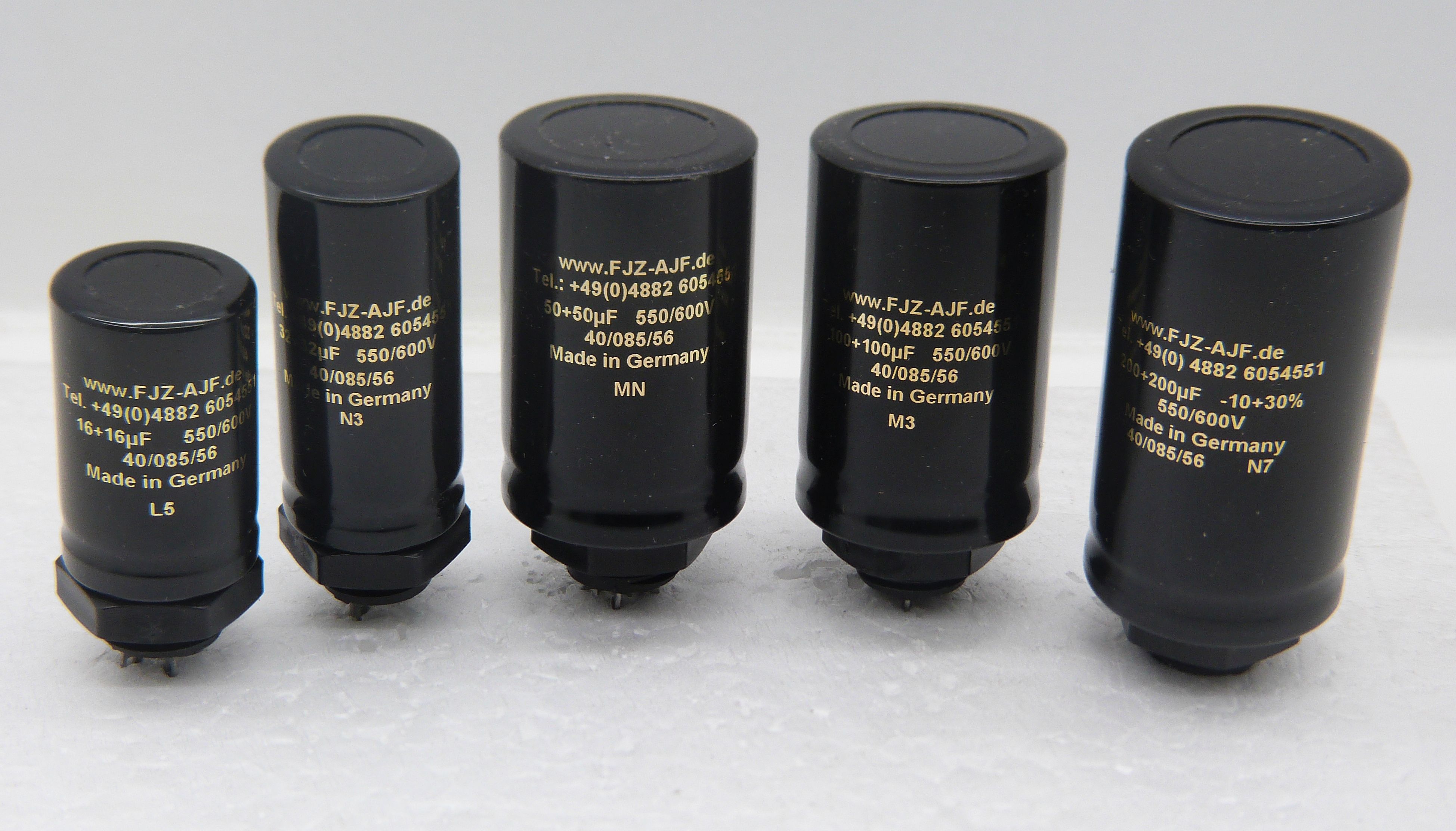

New series of FTCap screw mount electrolytics.
Until now all twin and triple screw mount caps follow German tradition with minus on can.
This can cause trouble if you need a solder lug with minus UNDER the chassis and this is why
we extended the product range. Beside the single section 16,32 and 50uF caps which always have had and will ever have
minus on a separate solder lug we stocked up and extended our assortment: 16+16 ; 32+32; 50+50 and 100uF single caps are
now available as fully shrink-sleeved screw mount caps. Those replace single and double section three prong twistlocks nicely
For prices and details please see the catalogue page :-)
|
 |
Grown range of economy line: Those axial audio grade film caps are rated 1500V.
This is a reasonable expansion of our stock line of HighGrade caps offering good performance at
very reasonable prices.
The range has been extended and refined and we sell them as assortments as well as by piece now.
All details here.
|
 |

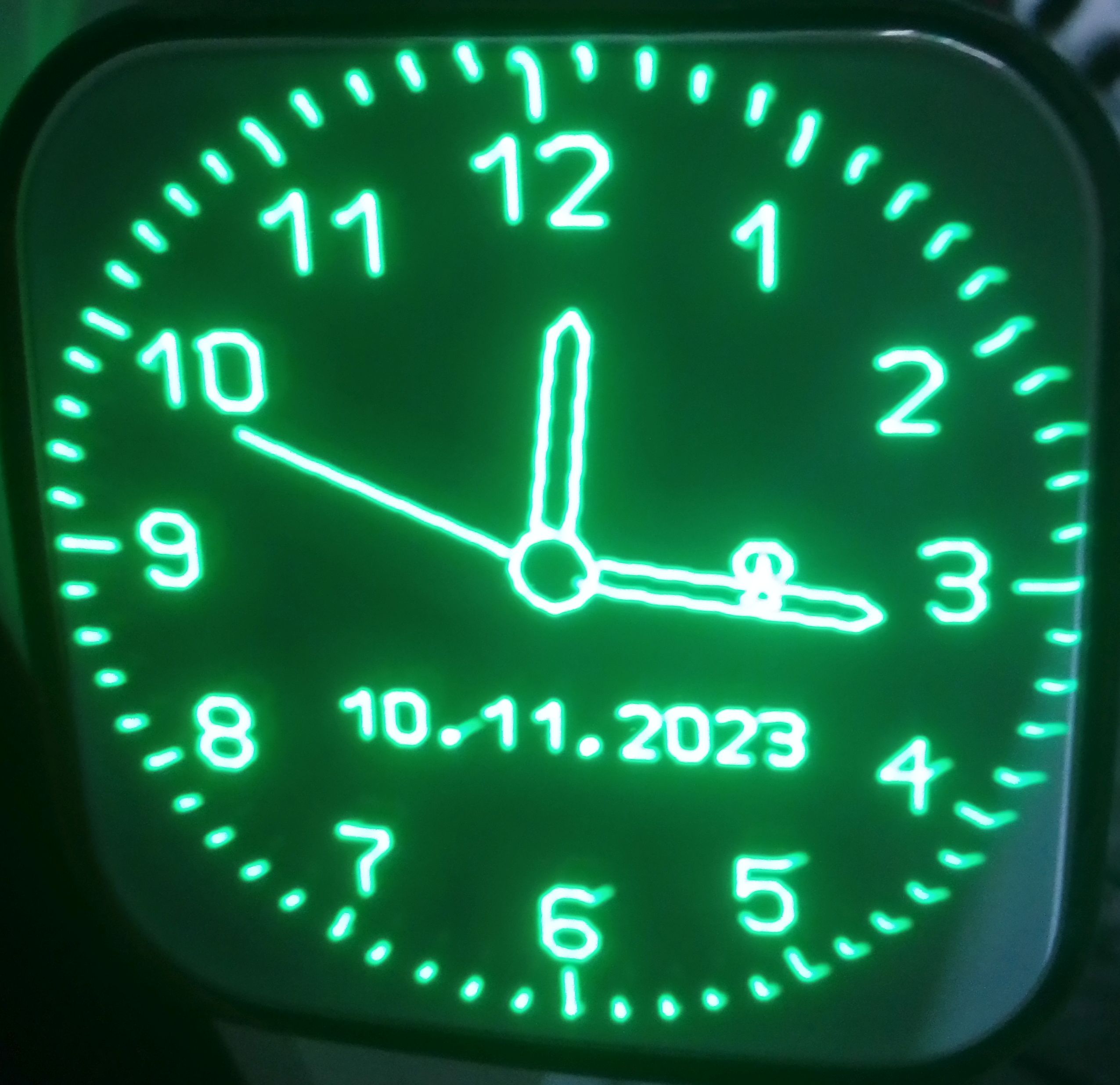

Flash news from the Scopeclockland:
First time ever since we started dealing with tubes we are able to offer orange phosphor scope tubes.
Those run excellently with our scopeclock-kit.
All information on our scopeclockpage.
|
 |
Flash news from the Scopeclockland:
PID-Module as add-on to our scopeclock kit: This switches the tube dark whenever there is nobody close enough to look at her.
This simple measure prolonges tube life enormously.
Those run excellently with our scopeclock-kit.
All information on our scopeclockpage.
|
 |
Mini-Scopetubes for use in Marantz tuners etc.
Brand new Telefunken tubes, really cool looking blue phosphor, a true eyecatcher !!!
All information on our scopeclockpage.
|
 |
6 G-E12A
NOS Japanese magic eye, "made of pure unobtanium"
This is a very, very rare Japanese magic eye used in the Fisher 100-R tuner, the Sansui Tube Receiver M250etc.
Screen is close to the common 6CD7 but it is - very uniquely - rectangular in shape.
Price is EUR 194,- / EUR 230,86 (incl./excl. VAT.)
|
 |
Sikatrops and similar PIO caps
Newly arrived is a stock of hermetically sealed, NOS German made capacitors of military quality.
In one of the most often needed rating of 50nF (.05uF) at 700V. Ideal coupling
and blocking caps both for repair and new construction.
They have been measured both for isolation and capacitance and are - flawless - !
We can supply them measured with results and also matched.
Made in the 40s and 50s by Siemens, SABA, Hydra, Frako.
available:
Item code KORH503: 50nF 700V EUR 3,28/3,90 (net / incl.VAT)
Cost per piece for specially measured ones: 1,43/ 1,70 EUR (net / incl.VAT)
Cost for selection of pairs: 4,37/ 5,20 EUR (net / incl.VAT)
Those are wonderful coupling caps.
|
 |
There have been quite a few customers asking for an Authenticap with more microfarads so we are
happy to introduce the KTL41 two section four prong twistlock Authenticap with 200+50uF at 500V in a compact
40*66 mm can. This is about the same size like the well known KTL9, just a tiny bit longer.
Another new Authenticap is the KTL40, a multi purpose high capacitance Authenticap and the small and nice
KTL50 which provides heater filtering for example under the crammed full chassis of the Marantz7.
All details including the datasheet are found at the Authenticap-page.
|
 |
Super special offer
We still have stock of NOS military Sylvania 6V6GTY. As stock allows we supply either the brown or black base version, this is our choice
Of course we do not mix those when sending pairs / quads :-)
Brand new ex military 6V6GT US made, wonderful tube for guitar amps.
Super special price : EUR 24,00 excl.- / EUR 28,56 incl. VAT-salestax.
Matching (With detailed protocol )
Pair: EUR 57,- / 67,83 (excl./incl. VAT )
Quad: EUR 120,- / 142,80 (excl. / incl. VAT) |
 |
Another special offer
Telefunken EL84 <> diamond bottom, used, measured and analysed, rated
100%, also with detailed test sheets.
Per piece EUR 49,- net / EUR 58,31 incl. VAT (for EU inhabitants)
Per matched pair EUR 105,- net / EUR 124,95 incl. VAT (for EU inhabitants)
Per matched quad EUR 215,- net / EUR 255,85 incl. VAT (for EU inhabitants)
|
|
The famous TFK YL1350 powerhorse.
NOS, fresh in their boxes, like directly from the factory.
This is an 80W power tube with a transconductance of 22.0000 umhos... Octal base so no problem to use it.
Datasheet |
 |
We are happy to announce the original Siemens version of the E83CC.
This is a real longlife tube, not a rebranded ECC83.
Guaranteed to be Siemens Munich made they were bought, labelled and boxed by Philips as SQ - Special Quality line.
Brand new, NOS, measured and in original boxes.
We can supply, as stock lasts:
Single tubes: EUR 64,20 / EUR 76,40
Pairs: EUR 144,- / EUR 171,36
And Quads: EUR 288,- / 342,72 (net / VAT incl.)
|
|
Original Siemens ECC88/6DJ8 Munich made, NOS,NIB,
former military stock. With falcon print which is the German Bundeswehr QM label.
This is an excellent upgrade of russian or chinese ECC88/6DJ8/6N23P/6922 in plenty of audio amplifiers, preamps, CD-players aso.
Single tube EUR31,76 / EUR 37,80 (net / incl. VAT)
Measured, symmetric pair EUR 72,27 / EUR 86,- (net / incl. VAT)
Measured, symmetric Quartett EUR 144,54 / 172,- (net / incl. VAT)
|
 |
Sale of electrolytics, price reduced again !!!
This is a surplus stock of new, unused FTCAp electrolytics which take up to much space in
250uF 500V FTCap, regular: 5,00/ 5,95 EUR (net/ VAT incl.) . Item: KLF25150
reduced as follows:
5 pcs EUR 11,76/14,- (net / incl VAT)
10pcs EUR 18,47/22,- (net / incl.VAT)
25pcs EUR 31,93/38,- (net / incl.VAT)
Box of 80 pcs EUR 92,44/110,- (net / incl.VAT)
This is a real FTCAp electrolytic in it´s well known quality.
For product details see electrolytic´s page.
|
 |
The family of vintage style electrolytics has grown: 2500uF 100V screw mount is an often needed type for use in early transistorised studio equipment.
This one is pretty compact having a 30*45 diameter * lenght can so it also replaces the older 40V version usually of same size.
See all details on the electrolytics cataloguepage.
|
 |
Motor running capacitor 48uF 100V used in Klemt Echolette etc. They are almost always to be replaced but hardly found.
Now we are able to supply this one from the shelf, freshly made in Germany.
See all details on the electrolytics cataloguepage.
|
|
Stock clearance
We do still have a huge stash of 1950-60s tube radio chassis, mainly of german make.
To throw those away would hurt us so we sell them for parts.
Each of those will contain at least
- The power transformer, mostly multi-primary.
- The chassis with tube sockets, small parts, push buttons, IF-Filters, binding posts etc.
- The variable capacitor, usually air tuned, 2-4 sections
This is an excellent point to start if you want to tinker with tubes, no need for
sheet metal work and chassis bending.
The photo shown here shows examples, sorry, we can not pick specific chassis for you.
Price per chassis: EUR 5 / 5,95 ( net / incl. VAT)
Order code: Chassis-1
New item:
Same as above, includes also the output transformer.
Easisest start for a small tube amplifier project.
Price per chassis: EUR 10,- / EUR 11,90 ( net/ incl VAT)
Order code: Chassis-2
PLEASE CONTACT US for shipping cost, those are fairly heavy but we will work out the best
possible shipping rates for you.
|
 |
Out of the job training of electronics experts we can offer a kit for a double power supply unit with
LM317 regulators. This is a very nice project to show kids and teenagers electronics
The board is really generous in size, easy to solder.
Kit contains of the circuit board and the parts to populate it.
Additionally you will need a suitable transformer, a cable power supply ( like those used for laptop computers
or a suitable wall wart.
This is not a toy, experts must be present when this kit is being assembled.
Take note: all documentation is in German language - though the circuit diagram is quite self explaining.
Price per set: EUR 5,00 / EUR 5,95 ( excl./incl. VAT), Order code: K317
Link to documentation.
|
 |

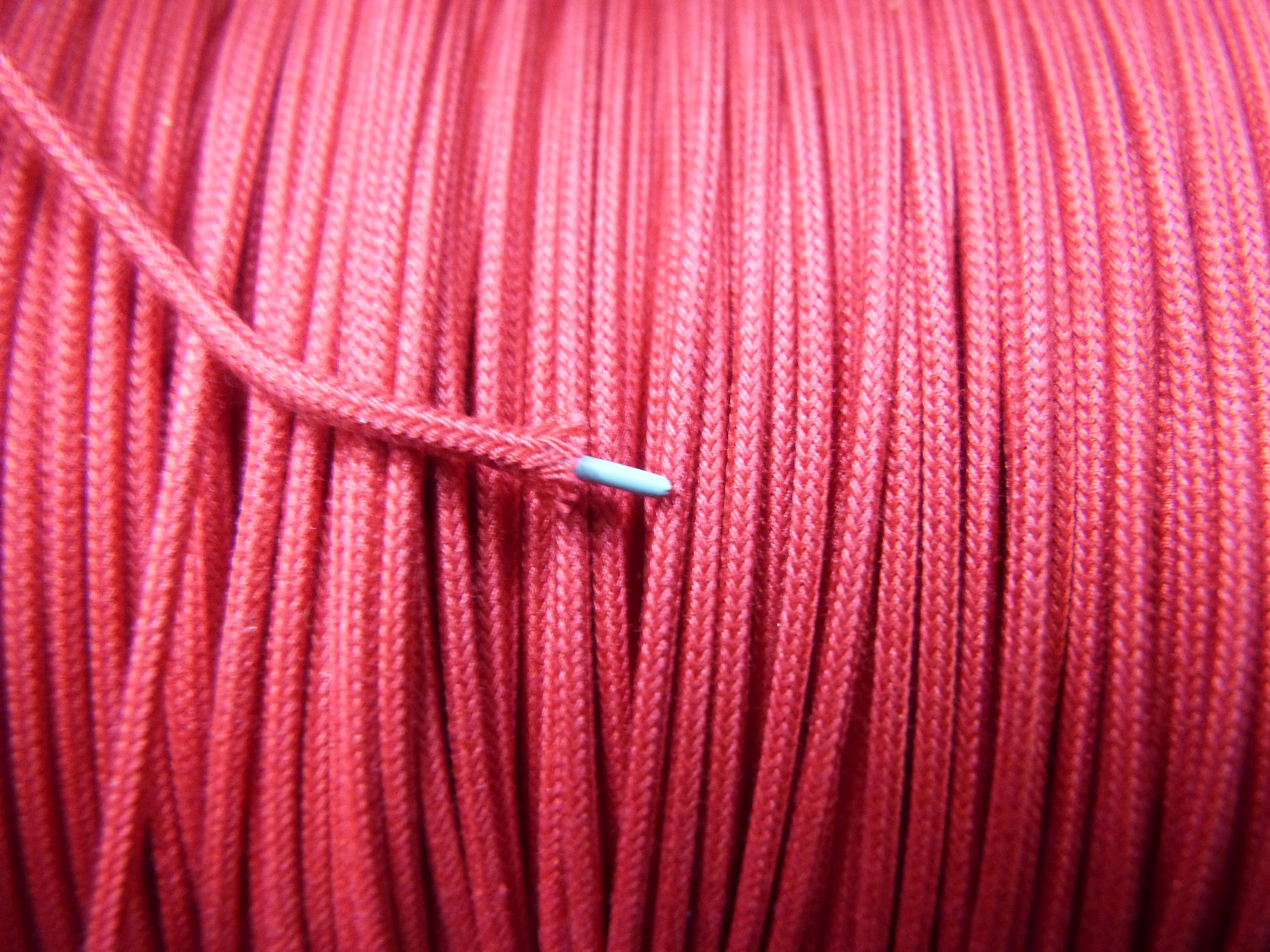

"Thick, heavy gauge" HF-Litz stranded wire up to 670*0,07 (670 single isolated strands of 0,07mm diameter) available from stock now, more details on our
Cable page.
|
|
Storagetube LN5: wonderful display object.
This is a former radar picture storage tube, NOS, high tech of i´s time.
Almost useless, NOS, NIB, for display or possible educational use. Datasheet |
 |
AF 8499 Seven segment display
This is an intersting display using ordinary miniature light bulbs and a bundle of fibers to
display each segment with four individual dots.
Very interesting for clock builders or collectors.
Digit size: ca. 6 x 12 mm.
Operating voltage ca. 6 V DC (+5...+9 V)
This is a former military sparepart.
as surplus, usually one bulb has burnt out
It´s easy to disassemble the display but replacing the bulb is a bit of tinkering.
Hardcore-solders are free to fit super bright LED....
We always supply six pcs plus one free for spare bulbs.
Price for one sixpack: EUR 12,-/EUR14,28 (excl./incl. MWSt.)
|
 |
NOS Elektrika (FTCap brand) antique film caps.
Beside those already listed ones we can now supply more types of those famous and sought-after capacitors.
Those are wonderful caps for tube circuits.
For details see our High Grade film cap page ( bottom of page)
|
 |

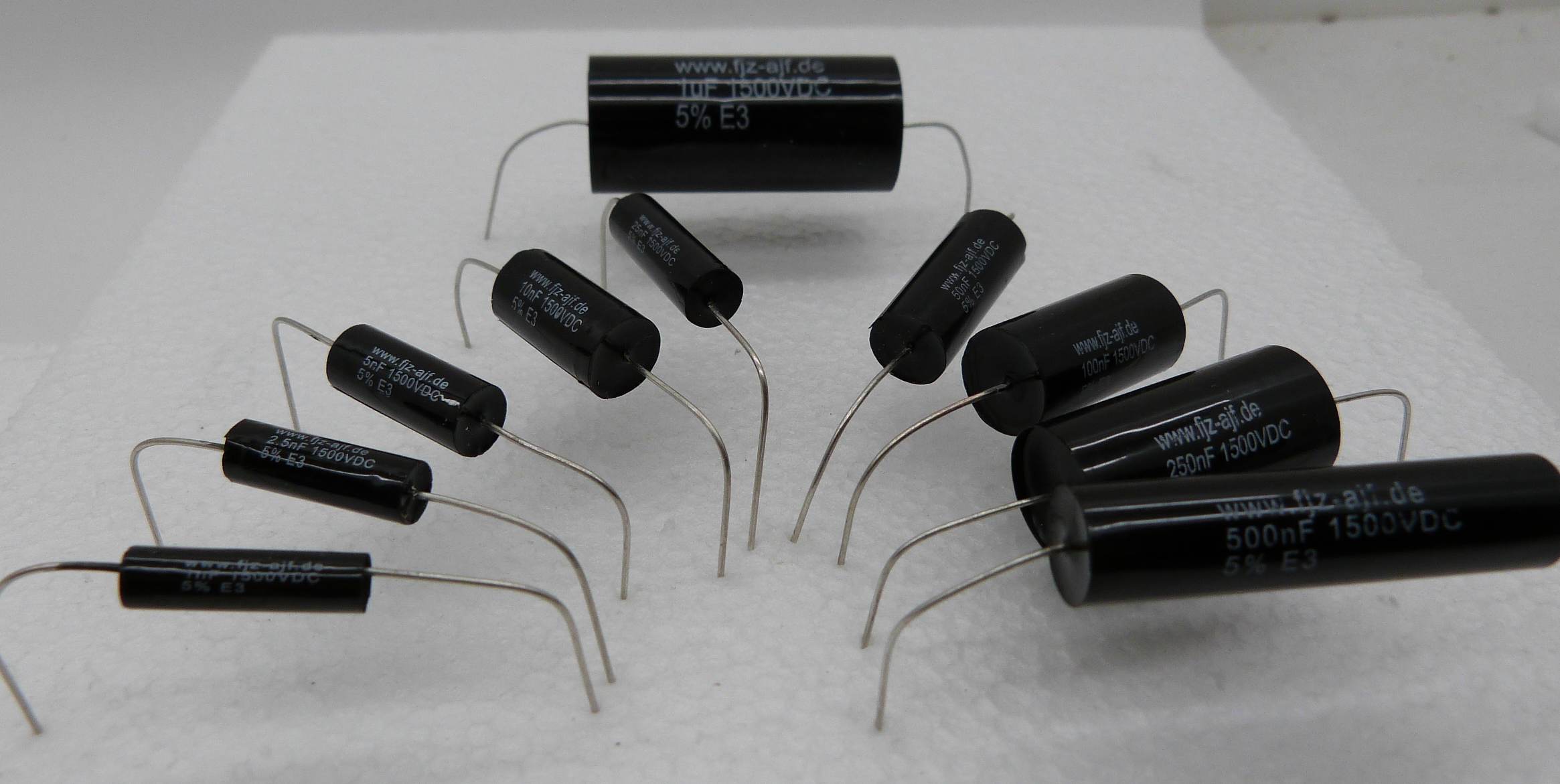

New HighGrade Precision film caps.
Our series of High grade film caps had started at 1000pF in the past. Now, finally, we can also supply them in smaller capacitances: 47pF to 820pF at 1000V and 2% Tolerance as Polypropylene-film caps.
Those complement the existing series so you have all caps available from 47pF to 100uF in precision Polypropylene. German made quality !!
For product details see our High Grade Capacitor page.
|
 |
Triple variable caps, Item KON0089B
NOS triple air variable caps, 3*330pF, superficial corrosion due to non-perfect storage without
influence to function, turn easily and softly, 1:1, no gear. F
Price each: 8,32/ 9,90 EUR (net / incl.VAT))
|
 |
Real Western Electric NOS Electrolytics
Measured 10uF 400V original Western Electric Electrolytics, unused military stock. Item KONWE10
price each: 20,17/ 24,00 EUR (net / incl.VAT)
|
 |
Leclanché 10uF 100V Film caps
Finest Swiss quality caps. Use for cythodey bypass, filtering, crossovers aso. Plenty in stock so very special price.
Item KONLE106
Price each: 0,75/0,89 EUR (net / incl.VAT)
|
|
Want a soda ? Looks like looking at those
2C39BA /7289.
Finest military quality, packed hermetically, mostly in sealed cans.
The 100W triode 7289/3CX100A5/ 2C39BA is used a lot in power PAs
It can also be used in powerfull audio amplifiers. Sure, a bit difficult to cool and one sees no glow but consider: A 100W Triode at this price...
NOS, NIB 7289 = 2C39BA at our special price:
EUR 15,92/ EUR18,95 (net / incl. VAT)
Ask for quantity discounts.
|
|
Real NOS 1L6 for sale, Made by Sylvania, OEM by Siemens for the Swiss military,
brand new in original boxes. Use in Zenith Transoceanic, Hallicrafters etc. EUR 18,- / 21,42 each ( net/ VAT included)
|
|
UL41 found in many AC/DC receivers from Europe, like Philips Philetta, NOS from military stock, EUR 9,90,- / 11,78 each ( net/ VAT included)
|
|
New Loetstelle.net-Project: Control a magic eye tuning indicator digitally (project includes controller IC)
New board and parts, More information here: http://www.loetstelle.net/projekte2/tinymagic/tinymagic.php |

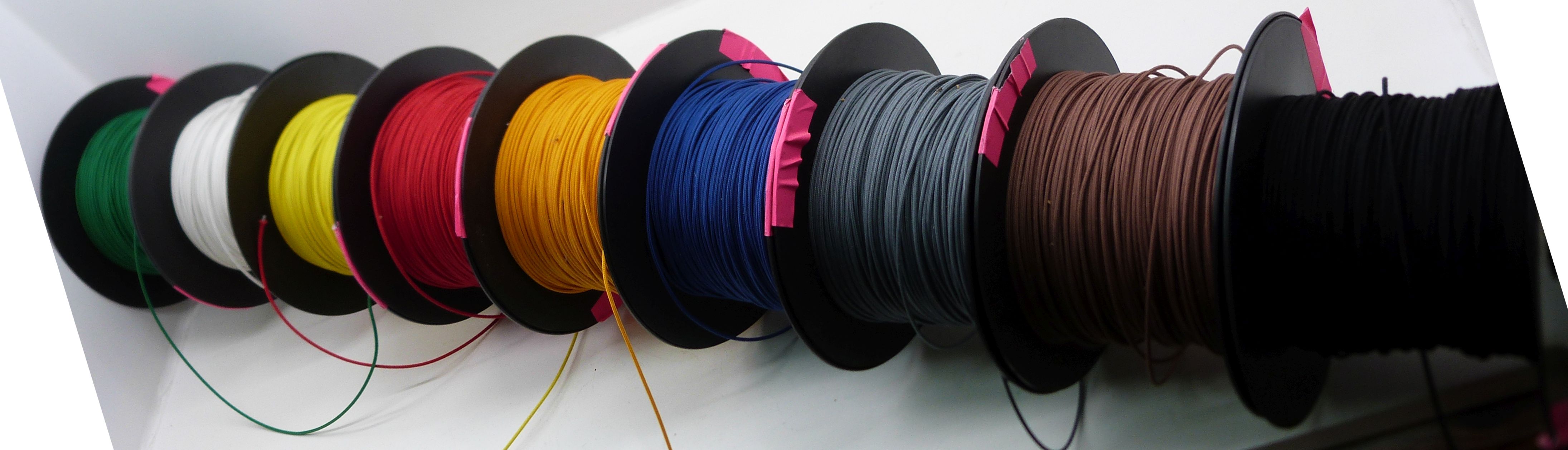

High quality shrink sleeve and tinned copper wire to realise your point-to-point wired projects. Sold by the meter.
|
|
|
EUR excl.
MWSt.
|
EUR incl.
MWSt.
|
|
CUSN06
|
tinned coppe wire, 0,6mm
|
0,18
|
0,21
|
|
CUSN12
|
Tinned copper wire 1,2mm, very easy to use, soft and comfortable.
|
0,50
|
0,60
|
|
SSS3
|
Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 3mm |
0,30
|
0,36
|
|
SSS5
|
Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 5mm |
0,33
|
0,39 |
|
SSS8
|
Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 8mm |
0,40
|
0,48
|
|
SSS10
|
Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 10mm |
0,50
|
0,60
|
|
SSS15
|
Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 15mm |
0,60 |
0,71
|
|
SSS20
|
Shrinksleeve, polyolefine, ratio 1:2, diameter not-shrinked: 20mm |
0,80
|
0,95
|

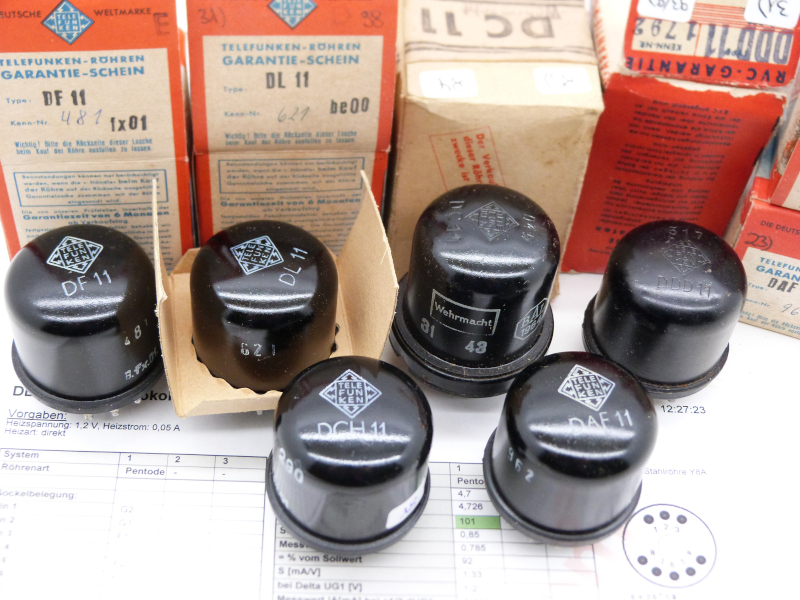

Special tube sale
All those tubes are true NOS tubes, many many of them Telefunken and all of them major brands.
| Type |
Brand |
Comment |
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
1 pc net |
1 pc / VAT incl. |
|
10pcs net |
10pcs VAT included |
|
50pcs net |
50pcs incl VAT |
|
100 pcs net |
100 pcs VAT incl |
| |
|
|
|
|
|
|
|
|
|
|
|
|
|
| 5678 |
USA |
|
3,90 |
4,64 |
|
3,00 |
3,57 |
|
2,60 |
3,09 |
|
2,20 |
2,62 |
| 0 B 3 |
USA |
|
3,20 |
3,81 |
|
2,50 |
2,98 |
|
2,00 |
2,38 |
|
1,50 |
1,79 |
| 0 D 3 |
RCA |
|
4,40 |
5,24 |
|
4,00 |
4,76 |
|
3,70 |
4,40 |
|
3,50 |
4,17 |
| 1 AD 4 |
Telefunken |
|
3,00 |
3,57 |
|
2,60 |
3,09 |
|
2,40 |
2,86 |
|
2,20 |
2,62 |
| 12 J 5 GT |
USA Military |
half an original US 6SN7GT, those cost real bucks against this bargain offer |
4,50 |
5,36 |
|
4,20 |
5,00 |
|
4,00 |
4,76 |
|
2,60 |
3,09 |
| 12 SG 7 |
USA (RCA) |
|
3,00 |
3,57 |
|
2,20 |
2,62 |
|
1,90 |
2,26 |
|
1,20 |
1,43 |
| 1S5 |
USA / RCA |
|
2,00 |
2,38 |
|
1,60 |
1,90 |
|
1,30 |
1,55 |
|
0,99 |
1,18 |
| 3 D 6 |
USA |
interesting for audio |
6,00 |
7,14 |
|
4,90 |
5,83 |
|
4,20 |
5,00 |
|
3,90 |
4,64 |
| 6 AH 6 WA |
USA |
|
4,50 |
5,36 |
|
4,00 |
4,76 |
|
3,50 |
4,17 |
|
2,20 |
2,62 |
| 75 C 1 |
Philips Holland |
|
2,23 |
2,65 |
|
1,50 |
1,79 |
|
1,00 |
1,19 |
|
0,55 |
0,65 |
| CK 1005 |
USA |
|
4,00 |
4,76 |
|
2,20 |
2,62 |
|
1,50 |
1,79 |
|
0,90 |
1,07 |
| DF 61 |
Telefunken |
|
3,00 |
3,57 |
|
2,50 |
2,98 |
|
2,20 |
2,62 |
|
1,80 |
2,14 |
| DF 91 |
Telefunken |
|
3,00 |
3,57 |
|
2,50 |
2,98 |
|
2,20 |
2,62 |
|
1,60 |
1,90 |
| E 180 F |
Philips Holland |
interesting for audio |
8,00 |
9,52 |
|
7,00 |
8,33 |
|
5,50 |
6,55 |
|
4,90 |
5,83 |
| E 83 F |
Philips Holland /Siemens |
interesting for audio |
11,00 |
13,09 |
|
9,50 |
11,31 |
|
8,60 |
10,23 |
|
7,00 |
8,33 |
| E 92 CC |
Telefunken |
interesting for audio |
4,00 |
4,76 |
|
3,80 |
4,52 |
|
3,50 |
4,17 |
|
3,20 |
3,81 |
| EBF 21 |
div |
|
5,90 |
7,02 |
|
5,20 |
6,19 |
|
4,00 |
4,76 |
|
3,20 |
3,81 |
| EBF 80 |
Telefunken |
really interesting type |
3,20 |
3,81 |
|
3,05 |
3,63 |
|
2,50 |
2,98 |
|
2,20 |
2,62 |
| ECF 801 |
Siemens |
|
3,20 |
3,81 |
|
3,00 |
3,57 |
|
2,80 |
3,33 |
|
2,40 |
2,86 |
| ECF 802 |
AEG / Siemens |
interesting for audio |
2,50 |
2,98 |
|
2,20 |
2,62 |
|
2,00 |
2,38 |
|
1,60 |
1,90 |
| ECL 80 |
Telefunken |
interesting for audio |
3,90 |
4,64 |
|
3,20 |
3,81 |
|
3,00 |
3,57 |
|
2,70 |
3,21 |
| EF 410 |
Telefunken |
|
5,50 |
6,55 |
|
5,00 |
5,95 |
|
4,40 |
5,24 |
|
2,90 |
3,45 |
| EL 12 N |
RFT, Germany |
interesting for audio |
8,50 |
10,12 |
|
8,00 |
9,52 |
|
7,00 |
8,33 |
|
7,00 |
8,33 |
| EY 500A |
Ei |
|
5,50 |
6,55 |
|
4,50 |
5,36 |
|
4,00 |
4,76 |
|
2,90 |
3,45 |
| KF 3 |
Tungsram |
directly heated, real old vintage |
8,50 |
10,12 |
|
7,00 |
8,33 |
|
6,20 |
7,38 |
|
5,10 |
6,07 |
| PABC 80 |
Telefunken |
interesting for audio, contains one half Tele ECC83 as triode section |
1,60 |
1,90 |
|
1,50 |
1,79 |
|
1,40 |
1,67 |
|
1,20 |
1,43 |
| PC 86 |
Philips Holland |
interesting for audio |
2,00 |
2,38 |
|
1,90 |
2,26 |
|
1,60 |
1,90 |
|
1,55 |
1,84 |
| PC 88 |
Philips Holland |
interesting for audio |
2,00 |
2,38 |
|
1,90 |
2,26 |
|
1,60 |
1,90 |
|
1,55 |
1,84 |
| PCF 802 |
AEG / Siemens |
interesting for audio |
2,10 |
2,50 |
|
2,00 |
2,38 |
|
1,80 |
2,14 |
|
1,20 |
1,43 |
| PCF 803 |
Telefunken |
interesting for audio |
2,10 |
2,50 |
|
2,00 |
2,38 |
|
1,80 |
2,14 |
|
1,20 |
1,43 |
| PL 82 |
Telefunken |
interesting for audio |
4,00 |
4,76 |
|
3,80 |
4,52 |
|
3,50 |
4,17 |
|
3,20 |
3,81 |
| PY 500A |
Ei |
|
3,50 |
4,17 |
|
3,00 |
3,57 |
|
2,20 |
2,62 |
|
1,50 |
1,79 |
| QQE 03/12 Y |
Philips Holland |
nice, yet undiscovered longlife audiotube |
5,50 |
6,55 |
|
5,00 |
5,95 |
|
4,60 |
5,47 |
|
3,90 |
4,64 |
| RL12T2 |
Wehrmacht |
true Wehrmacht, potential audio type |
5,00 |
5,95 |
|
4,20 |
5,00 |
|
3,90 |
4,64 |
|
2,90 |
3,45 |
| RL2P3 |
Wehrmacht |
true Wehrmacht, potential audio type |
5,00 |
5,95 |
|
4,20 |
5,00 |
|
3,90 |
4,64 |
|
2,90 |
3,45 |
| STV 85 / 10 |
AEG, various |
85 V voltage reference |
3,90 |
4,64 |
|
2,00 |
2,38 |
|
1,80 |
2,14 |
|
1,00 |
1,19 |
| UBL3 |
Siemens, Munich |
potentially interesting audio power tube |
7,30 |
8,69 |
|
7,00 |
8,33 |
|
5,50 |
6,55 |
|
5,20 |
6,19 |
| UCL 11 |
Siemens, Munich |
used in many old radios |
13,00 |
15,47 |
|
11,50 |
13,69 |
|
9,90 |
11,78 |
|
8,00 |
9,52 |
| VY 1 |
T/V/P/U |
|
14,00 |
16,66 |
|
8,00 |
9,52 |
|
5,50 |
6,55 |
|
3,50 |
4,17 |
 |
New OPT
Long time expected: a small SE OPT with about 1W power rating to be used with
- Battery tubes: replaces the OPT in almost any battery powered radio (with SE amp)
- Small power applications, if you use high efficiency speakers and like low power amps
- Headphone amps
- or as step.up interstage, ratio 30-50
Primary 8 and 10 kOhms, 15mA max, sec. 4 and 8 ohms.
German made quality.
For details and prices see our OPT page
|
 |
Microwave feedhorn sets
For licensed amateurs who follow all rules and regulations:
Set of two feedhorns with surrounding electronics, we have absolutely no data and
information about those so this is a totally experimental project. Also nice for
teachers to show students the basics of microwave radio.
Order code: AF9784, Photo similar, actual products may vary very slightly.
Price for a set of two pcs: EUR 18,- / EUR 21,42 ( excl. / incl. MWSt.)
|
 |
New grill cloths for radios.
Cloth is difficult enough as collections are subject to fashion..
We found a few very nice cloths, see our
sparepartpage for details.
|
|
High power Doorknobs rated 1,7nF to 3nF (1700pF to 3000pF) at 40kV and 50kV (!!)
Those are excellent caps for Teslacoils, marxgenerators, high current applications etc.
One customer built a teslacoil and allowed us to publish a video of his tesla coil operating. Here it is !
Those are used, tested caps from disassembled industrial applications. They are oil-resistant so no problem to use them immersed in oil.
Detaileds datasheet: If you want one, mail us and we will gladly send you one.
|
|
New arrival: 6B4G Sylvania Power triode, NOS, former mil. stock.
Now you can build real triode amps with real western NOS tubes at a very attractive price.
Ex mil stock, individually boxed, early 1950s production
We supply the twin plate version with two internally paralleled systems having low distortion and high linearity due to.
completely parallel plates.
Tubes are being supplied with curvetraces and detailed testsheet, also paired and as quads if wanted. |
|
New horse in the stable: The "Roetest" from Mr.Weigl.
This is a computerised precision tube analyser and measuring system allowing many different tests, curve tracing and much more.
even THD can be calculated.
We offer this as additional service at a fixed price per tube.
|
|
New High Grade film caps in the range between 1 and 10 uF. Fine selection of ratings to cover this range.
Now all ratings between 47pF and 100uF are being covered. Those are excellent caps for crossovers, PSU, bypassing, coupling etc. |
|
Often sought-after: sheet-material bakelite ("Paxolin"), 1,0-10mm thickness. Standard and custom made cuts available.
Also in black lamination as ebonite-replacement. |
|
RF-variable caps from 12 to 240pF at max. 1-3 kV.
The caps can be disassembled and modified pretty easily.
Here you see a PDF about cap-modding from 240pF 1kV to 50pF 4kV
|
|
boards and parts for the easy DIY tube projects of www.loetstelle.net are available from stock.
|
We kept our pages free from programming gimmicks as long as anyhow
possible but now we had to include a little Javascript to ensure the
display
of the upper navigation frame.
If you don´t see the navigation bar with it´s buttons on
top of the page, please activate Javascript in your browser. If you
can´t
do that or if you don´t want to do that click here for the sitemap
Content of this site is revised and
updated continually. Have fun browsing and please report bugs.
External
link: A MUST to visit if you love old radios:
|
